ideaMaker 4.2.0 Beta 更新说明

2021年08月24日

ideaMaker 4.2.0 Beta Release Notes

ideaMaker Library



整合ideaMaker和ideaMaker Library的功能。

在设置向导、添加打印机和材料时,用户可以方便的找到来自ideaMaker Library的切片模板。同时也可以在未找到模板时,定位到Profile Generator去生成自定义切片模板。



Mesh Boolean Operations

增加对3D模型的布尔操作,包括对模型的合并、差集、相交运算的功能支持。

用户可以在工具栏上选择Boolean图标来进入布尔功能。

不需要像旧版本一样使用Modifier来实现布尔操作。







Texture

增加新的texture mapping类型, Cube (No Mirroring)。解决相邻面贴图的图片相互镜像的问题。



Belt 3D Printer

1. 当选项Place Seam on Belt Edge启用时,支撑结构的outlines接触皮带的部分也将采用outline的中心点作为起始点,避免开始打印在悬空的部分导致连接失败。

2. 修复部分outer shells和inner shells的起始点不在belt wall的中心点的问题。

3. 修复belt 3d printer与顺序打印启用时部分界面显示的问题。



Slice Settings

1. 增加切片高级设置界面的搜索功能,可以快速搜索定位切片选项的位置。





2. 增加切片高级设置界面的模板名称修改功能。

*注意默认模板的名称无法修改。





3. 同一个模型的不同部分,启用选项“Print Parts in Same Order for Each Layer”时,每一层都使用相同的顺序依次打印这些结构。(之前的版本仅对不同模型生效。)这个功能改进可以增加同一个模型不同部分的材料冷却的时间。

4. 增加选项,当停止打印后续的wipe wall和wipe tower时,可以分别控制是否冷却inactive extruder。对于“2 In 1 Out”的挤出结构而言,停止打印wipe wall和wipe tower也不能直接冷却喷嘴。





5. 增加预估打印时间和预估材料消耗量的placeholders。

print_time_total:  预估打印时间 Estimated Print Time

filament_used_mm_total:  预估总的材料消耗长度 (左喷嘴+右喷嘴)Estimated length of filament going to be used (left extruder + right extruder)

filament_used_gram_total:  预估总的材料消耗重量 (左喷嘴+右喷嘴)Estimated weight of filament going to be used (left extruder + right extruder)

filament_used_cost_total:  预估总的材料消耗价格 (左喷嘴+右喷嘴)Estimated total cost of filament going to be used (left extruder + right extruder)

filament_used_mm1:  预估左喷嘴材料消耗长度 Estimated length of filament going to be used on left extruder

filament_used_gram1:  预估左喷嘴材料消耗重量 Estimated weight of filament going to be used on left extruder

filament_used_cost1:  预估左喷嘴材料消耗价格Estimated total cost of filament going to be used on left extruder

filament_used_mm2:  预估右喷嘴材料消耗长度 Estimated length of filament going to be used on right extruder

filament_used_gram2:  预估右喷嘴材料消耗重量 Estimated weight of filament going to be used on right extruder

filament_used_cost2:  预估右喷嘴材料消耗价格 Estimated total cost of filament going to be used on right extruder

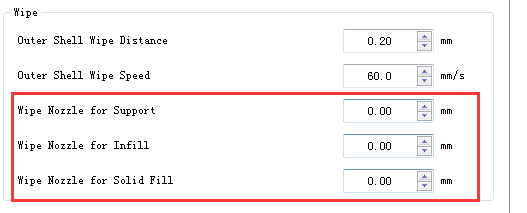

6. 增加Wipe Nozzle设置,可以对Support、Infill、Solid Fill结构分别设置。补充原来的Outer Shell Wipe Distance设置。





7. 增加打印进度的placeholder: {print_progress}。

在Layer Change GCode和Extruder Switch GCode tab中都可以添加。





8. 增加设置切片文件预览图尺寸的选项,位于打印机设置界面>高级。该功能仅用于Raise3D打印机,修改.data文件中的图片信息。

9. 打印机设置下允许修改喷嘴的指令序号。

注意:该功能不适用于Raise3D打印机。用户在使用此功能前,请确认自己的打印机的喷嘴指令格式。





Bug Fixes

1. 修复retraction amount=0时,启用firmware retraction时没有插入G10/G11指令的问题

2. 修复部分Linux系统下,ideaMaker报错uninitialized stack frame的问题。

3. 修复部分Windows和macOS操作系统下,移动模型时ideaMaker crashes的问题

4. 修复Reset GCode E Length on Layer Change影响部分模型切片预估时间和预估材料用量的问题。

5. 修复部分导出的gcode文件名乱码问题。

6. 修复部分模型切片时间过长的问题。

7. 修复macOS下顶部菜单栏的部分文字翻译的问题。

8. 带有modifiers的模型在删除modifier之后,复制该模型依然会出现已经被删除的modifiers。

9. 修复部分placeholders在End GCode设置中没有被正确转换的问题。

10. 修复顺序打印时,打印下一个模型前缺少回退后的挤出指令。

11. 修复部分Linux和macOS操作系统切片后导出的data文件预览图颜色不正确的问题。
